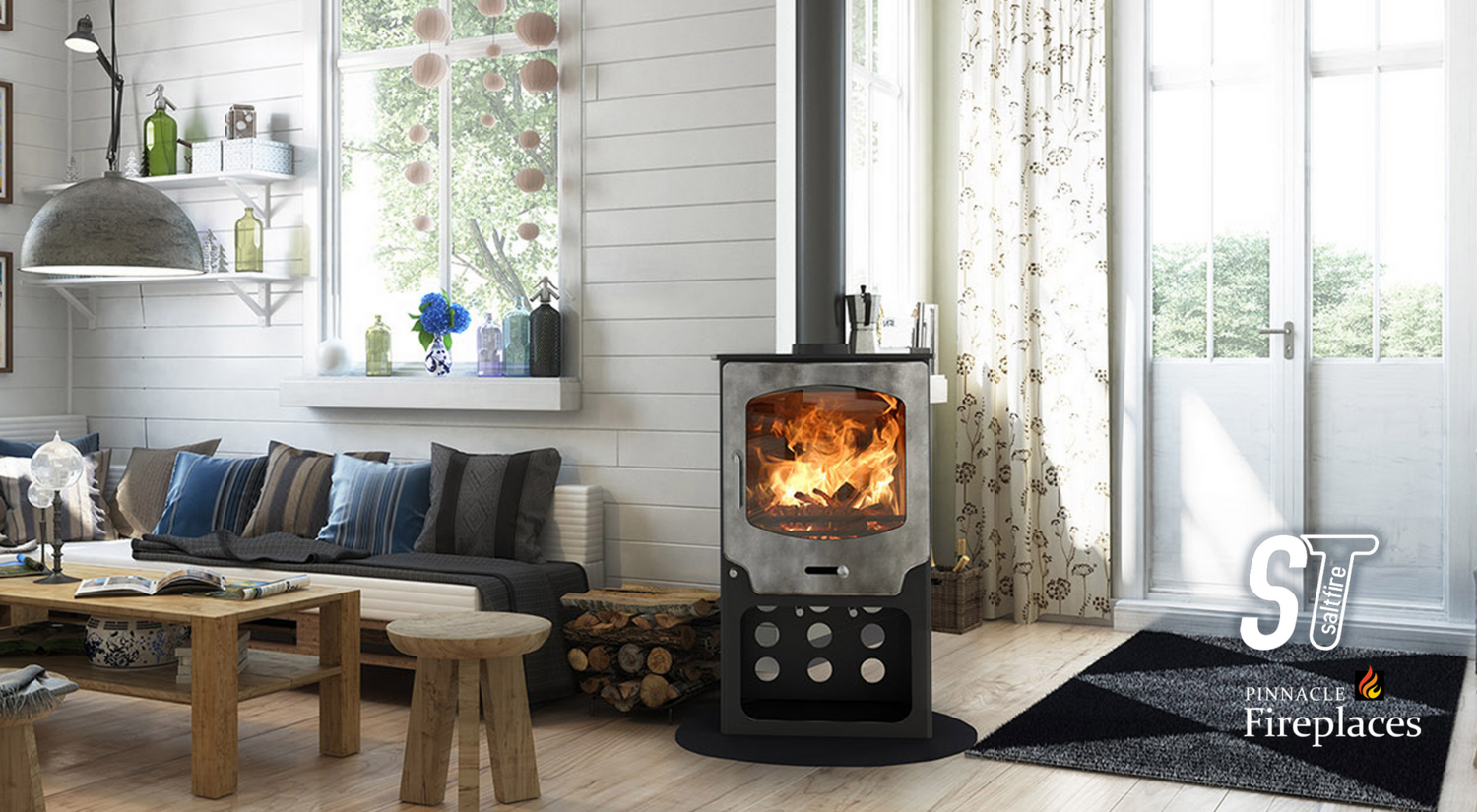

SALTFIRE ST-X8 TALL

Description

The largest size model of the new ST-X Tall range - the ST-X8 Tall is rated at 8kW output, and approx 81% efficiency.

Already EcoDesign compliant to meet 2022 ErP requirements. Minimal emmisions.

The ST-X8 Tall has a large firebox allowing a greater range of heat output and for larger logs to be burned.

Constructed from a precision-welded thick steel body with cast iron door and thermo-refractory fire brick inner linings.

Many times cleaner than the required standard for "DEFRA" exemption, it can legally be used anywhere in the UK including the strictest of smoke control zones.

Designed with simple, easy to operate user friendly controls.

Designed with a large viewing window for amazing views of the fire. The flame pattern with the advanced "after-burner" system is quite unique.

The ST-X8 Tall is a multi-fuel stove able to efficiently burn wood logs or smokeless coal - the coal ashes will fall through the grate and into the ash can which easily lifts out when full.

The stove is ready to install, no assembly is required and comes complete with high temperature mitt/glove.

Finished in black high temperature paint which we source from the USA and with thermo-ceramic clear glass from the industry-leading "Schott" brand in Germany.

There is an air-wash system to help keep the glass clearer.

The ST-X8 Tall has a 5"(125mm) diameter top and rear flue outlet. Can be used with 5" diameter flue liner or twinwall flue.

For more information call us on 01354 680663 or email us at pinnacle.apw@gmail.com

Features

• Ecodesign 2022 Ready (future proofed)
• DEFRA Exempt / Approved for Smoke Control Areas

• Large viewing window

• 3-10kW operating range

• 80.5% efficiency

• Ultra-clean burning

• Low maintenance

• No delicate complex parts to go wrong

• Suitable for use on 12mm hearth

• Generous firebox size

Specifications

Heat output	8 kW
Height	853mm
Width	515mm
Depth	416mm
Approx weight	120 kg
Flue size	5" (125mm)
Internal Firebox width	390mm
Internal Firebox depth	290mm
Max Log Size	14" (360mm)
Rear to centre of top flue	120mm
Floor to centre of rear flue	753mm
Distance to Combustibles	700mm to side walls 800mm to rear wall
